OPTIC PATTERNS

This list is only for referencing what footprints various optics use. Refer to the specific product description for the service you are purchasing to ensure you place the correct order for the optic you will be using.

​

  • Trijicon RMR​

    • ​Trijicon: RMR, SRO​​

    • Holosun: 407c, 507c, 508t​, 507 Comp

    • Sig Romeo Zero R

    • Swampfox: Liberty and Justice

    • Riton PRD Series

  • Shield RMSc/RMS

    • Shield: RMS, RMSc, RMSx, RMSw​

    • Holosun: 507k, 407k, EPS, EPS Carry

    • Sig: Romeo Zero, Romeo Zero ELITE

    • Swampfox Sentinel

    • Riton MPRD Series

    • Primary Arms Classic 21mm

    • Salvo Optics SRC

    • Vortex Defender CCW

  • Docter Pattern

    • Vortex Venom​

    • Burris Fastfire 3

  • Leupold Deltapoint Pro

    • Leupold Deltapoint Pro​

    • Sig Romeo Zero Pro, Romeo 1 Pro

​

UNIQUE FOOTPRINTS NOT SHARED WITH OTHER OPTICS

​

  • Aimpoint ACRO P1 & P2​

  • Vortex Viper

  • Steiner MPS

  • Holosun 509T

  • Trijicon RMRcc

  • Primary Arms 509T ACSS

​

WE DO NOT MACHINE FOR CRIMSON TRACE, ADE, OR COUNTERFEIT OPTICS.

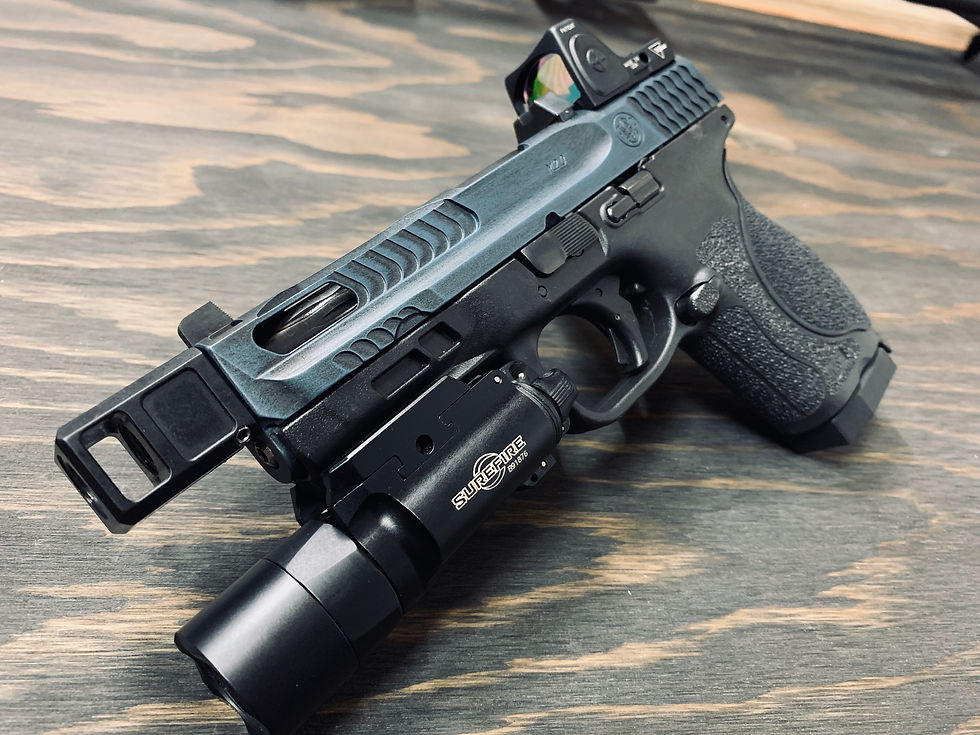

M&P RMR / SRO / 507C Optic Cut

M&P RMR / SRO / 507C Optic Cut

This is for the machining and installation of the Trijicon RMR/SRO (As well as the Holosun 507C/407C/508T series) on a M&P Slide. This includes all models EXCEPT the Shield series of pistols and rimfire models. There are several mounting options for the RMR pattern optics (See below for details). Please read all points below:

Several options for installation location:
  1. Elimination of the rear iron sight
  2. Optic with a rear iron sight. This involves the conversion of the rear dovetail to accept Glock pattern rear iron sights. This option carries and additional cost of $20.
  3. Elimination of the rear iron sight with a new Glock pattern dovetail machined   front of the optic body (known as irons forward). This option carries and additional cost of $20.

  • Price does not include refinishing. Stainless steel slides will recieve a coating of LPS3 to the optic pocket.
  • Cerakote can be added to your order HERE
  • It is REQUIRED that the optic be supplied with the slide for machining and installation. We measure and fit EACH optic to each slide we install them on. We do this to ensure the most secure installation possible.
  • You are responsible for shipping cost. The Shipping added at checkout covers the cost of shipping back to you via USPS. Shipping includes $800 in insurance coverage.
  • Current leadtimes are located at the top of the webpage.
  • THIS IS FOR THE MACHINE WORK FOR THE OPTIC INSTALLATION ONLY!!! The optic is not included!

  • Iron Sight Information

    The iron sights we recommend for the Glock dovetail conversion options are as follows:

    Rear sight behind the optic:

    Angry Bear Arms

    • Fiber Optic set with .348 Glock Rear and M&P .255 Front available HERE
    • Blackout Serrated set with .348 Glock Rear and M&P .255 Front available HERE

    Ameriglo

    • Glock pattern .​429​" rear with a M&P pattern .320" front. Ameriglo sight measurements are total height from bottom of dovetail to top of sight blade.

    ​Dawson Precision

    • ​Low Witness: ​Glock MOS .3​35" rear with a M&P .2​4​0"​ or .245​ front (blade height​s​)
    • ​Lower 1/3: Glock MOS .360" rear with a M&P .265" front (blade heights) ​

    Irons forward of optic:

    ​Dawson Precision

    • Glock MOS .290" rear with a M&P .245"​ front (blade height​s​)
$89.99Price
No Reviews YetShare your thoughts. Be the first to leave a review.
Add Cerakote To Your Order

Add Cerakote To Your Order

$60.00Price
