OPTIC PATTERNS

This list is only for referencing what footprints various optics use. Refer to the specific product description for the service you are purchasing to ensure you place the correct order for the optic you will be using.

​

  • Trijicon RMR​

    • ​Trijicon: RMR, SRO​​

    • Holosun: 407c, 507c, 508t​, 507 Comp

    • Sig Romeo Zero R

    • Swampfox: Liberty and Justice

    • Riton PRD Series

  • Shield RMSc/RMS

    • Shield: RMS, RMSc, RMSx, RMSw​

    • Holosun: 507k, 407k, EPS, EPS Carry

    • Sig: Romeo Zero, Romeo Zero ELITE

    • Swampfox Sentinel

    • Riton MPRD Series

    • Primary Arms Classic 21mm

    • Salvo Optics SRC

    • Vortex Defender CCW

  • Docter Pattern

    • Vortex Venom​

    • Burris Fastfire 3

  • Leupold Deltapoint Pro

    • Leupold Deltapoint Pro​

    • Sig Romeo Zero Pro, Romeo 1 Pro

​

UNIQUE FOOTPRINTS NOT SHARED WITH OTHER OPTICS

​

  • Aimpoint ACRO P1 & P2​

  • Vortex Viper

  • Steiner MPS

  • Holosun 509T

  • Trijicon RMRcc

  • Primary Arms 509T ACSS

​

WE DO NOT MACHINE FOR CRIMSON TRACE, ADE, OR COUNTERFEIT OPTICS.

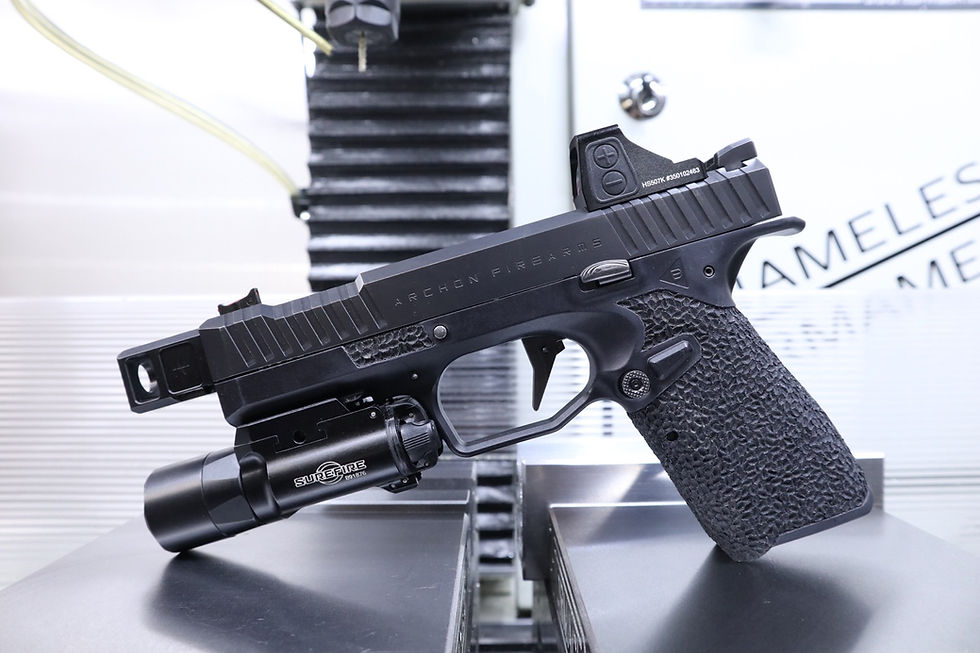

Archon Type B RMSc / 507K Optic Cut

Archon Type B RMSc / 507K Optic Cut

SKU: ARCB507K-RDT
This is for the machining and installation of the Holosun 507K & 407K (includes the Sig Romeo Zero) on an Archon Type B Slide. This cut will NOT work with the following RMS Pattern Optics: Shield RMS series, Swampfox Sentinel, Riton Tactix MPRD, or the Zaffiri Precision SRC. The mounting fastener bores are not large enough in diameter to allow for raised bosses to accomodated additional thread engagement we feel is necessary for mounting with 6-32 fasteners. Please read all points below:

  • Price does not include refinishing. Carbon steel slides will have a cold blue and oil coat applied to the machined pocket. Stainless steel slides will recieve an oil coat to the machined pocket.
  • Cerakote can be added to your order HERE
  • It is REQUIRED that the optic be supplied with the slide for machining and installation. We measure and fit EACH optic to each slide we install them on. We do this to ensure the most secure installation possible.
  • You are responsible for shipping cost. The Shipping added at checkout covers the cost of shipping back to you via USPS. Shipping includes $800 in insurance coverage.
  • Current leadtimes are located at the top of the webpage.
  • THIS IS FOR THE MACHINE WORK FOR THE OPTIC INSTALLATION ONLY!!! The optic is not included!
    $89.99Price
    No Reviews YetShare your thoughts. Be the first to leave a review.
    Add Cerakote To Your Order

    Add Cerakote To Your Order

    $60.00Price
